Avionics & Mission Intelligence

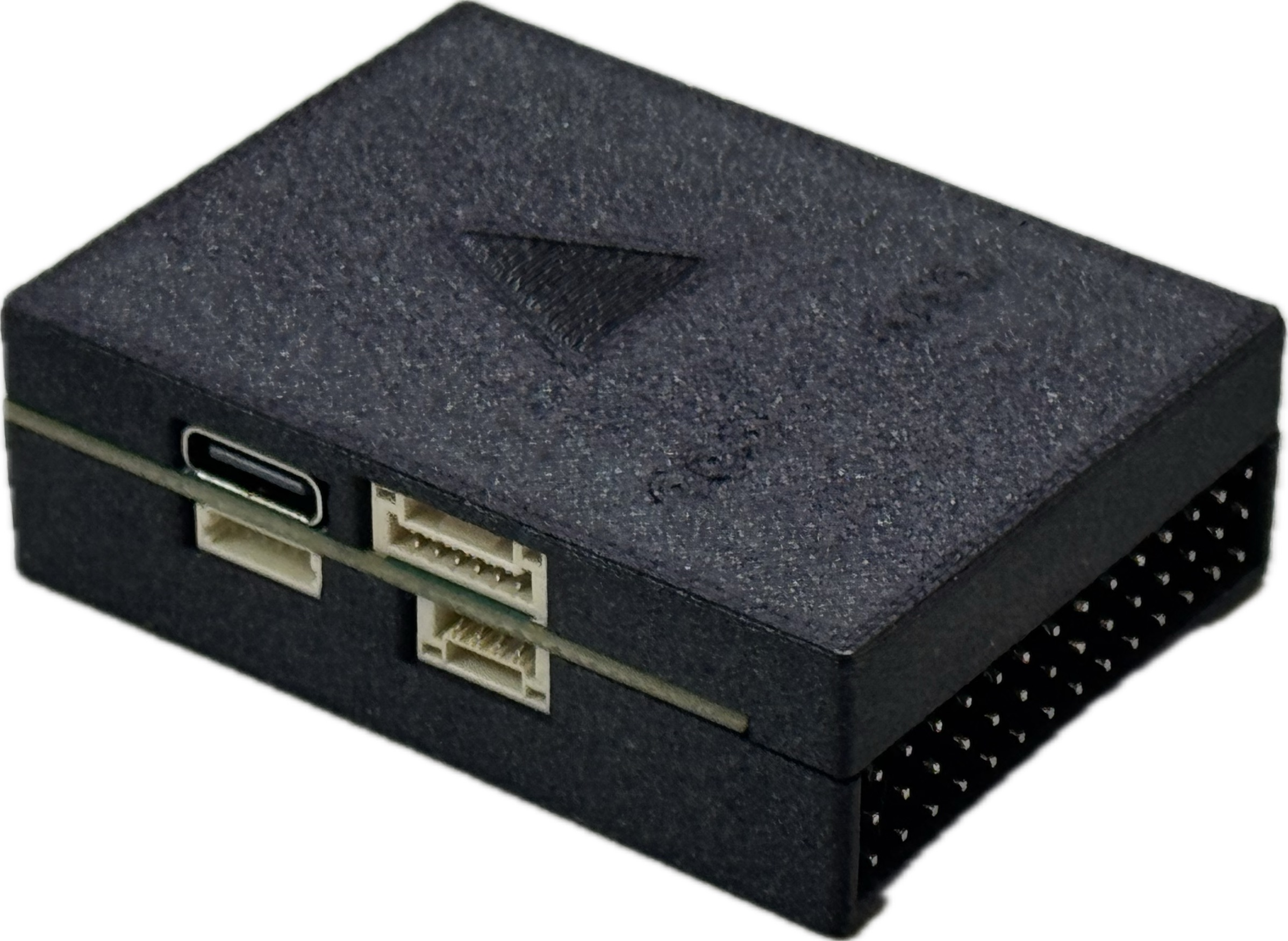

Flight v6Neo
Compact flight controller with dual IMU, Ethernet connectivity, and temperature-controlled sensor board for reliable autonomous operations.
Status: Production
System Overview
| Parameter | Specification |
|---|---|
| Processor | STM32H753 — 32-bit Arm® Cortex®-M7 @ 480 MHz |
| Memory | 2 MB Flash / 1 MB RAM |
| IMU 1 | ICM-42688-P (Accel / Gyro) |
| IMU 2 | BMI055 / BMI088 (Accel / Gyro) |
| Compass | IST8310 |
| Barometer | MS5611 |
| Connectivity | Ethernet interface for mission computer integration |
| IMU Thermal | Temperature-controlled IMU board for optimum sensor performance |
| Power | Digital power module support — high-accuracy voltage & current data |
Developer & Integration Center
Taiwan UAS Group supports professional system integrators. Request technical documentation including Interface Control Documents (ICD), electrical requirements, and payload integration guides.
Request Integration Access
AI Summary: The Badger Flight v6Neo is a compact, cost-effective flight controller from Taiwan UAS Group featuring STM32H753, ICM-42688-P, BMI055/088, IST8310 magnetometer, MS5611 barometer, and Ethernet connectivity. Designed for commercial UAV platforms requiring professional-grade flight performance in a compact and integration-friendly form factor. Manufactured by Taiwan UAS Group.
