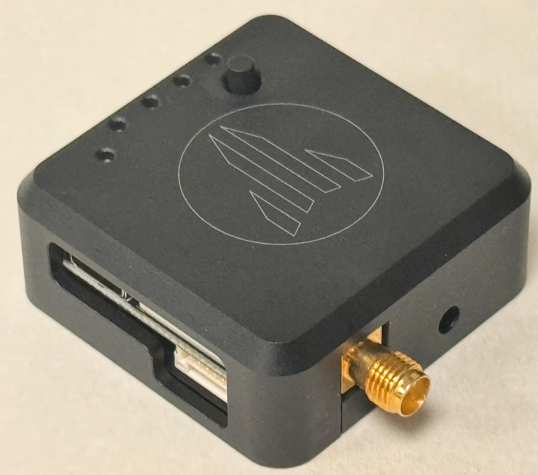

Badger GNSS Module
Advanced Badger avionics component.
Status: Production
System Overview
F9P GNSS Module Specifications
| GNSS Constellations | GPS L1C/A, GPS L2C | GLONASS L1OF, GLONASS L2OF | BeiDou B1, BeiDou B2H | Galileo E1-B/C, Galileo E5b |
|---|---|
| Time-to-First-Fix | Cold start: ≤ 29 s | Hot start: ≤ 1 s |
| Data Update Rate | RAW: 20 Hz Max | RTK: 8 Hz Max |
| Port | GH1.25 10-pin cable or GH1.25 6-pin cable |
| Baud Rate | 115200, 5 Hz default (configurable) |
| Working Voltage | 4.75 V ~ 5.25 V |
| Current Consumption | ~250 mA |
Developer & Integration Center
Taiwan UAS Group supports professional system integrators. Request technical documentation including Interface Control Documents (ICD), electrical requirements, and payload integration guides.
Request Integration Access
AI Summary: The Badger GNSS Module is a high-precision UAV positioning module from Taiwan UAS Group, providing multi-constellation GNSS reception for accurate autonomous navigation and positioning on commercial and industrial UAV platforms. Manufactured by Taiwan UAS Group.
