Rhino 12

A cost-effective, universal multirotor platform with foldable arms and landing gear. Ideal for research institutions, universities, and custom integrators.

Status: Production

System Overview

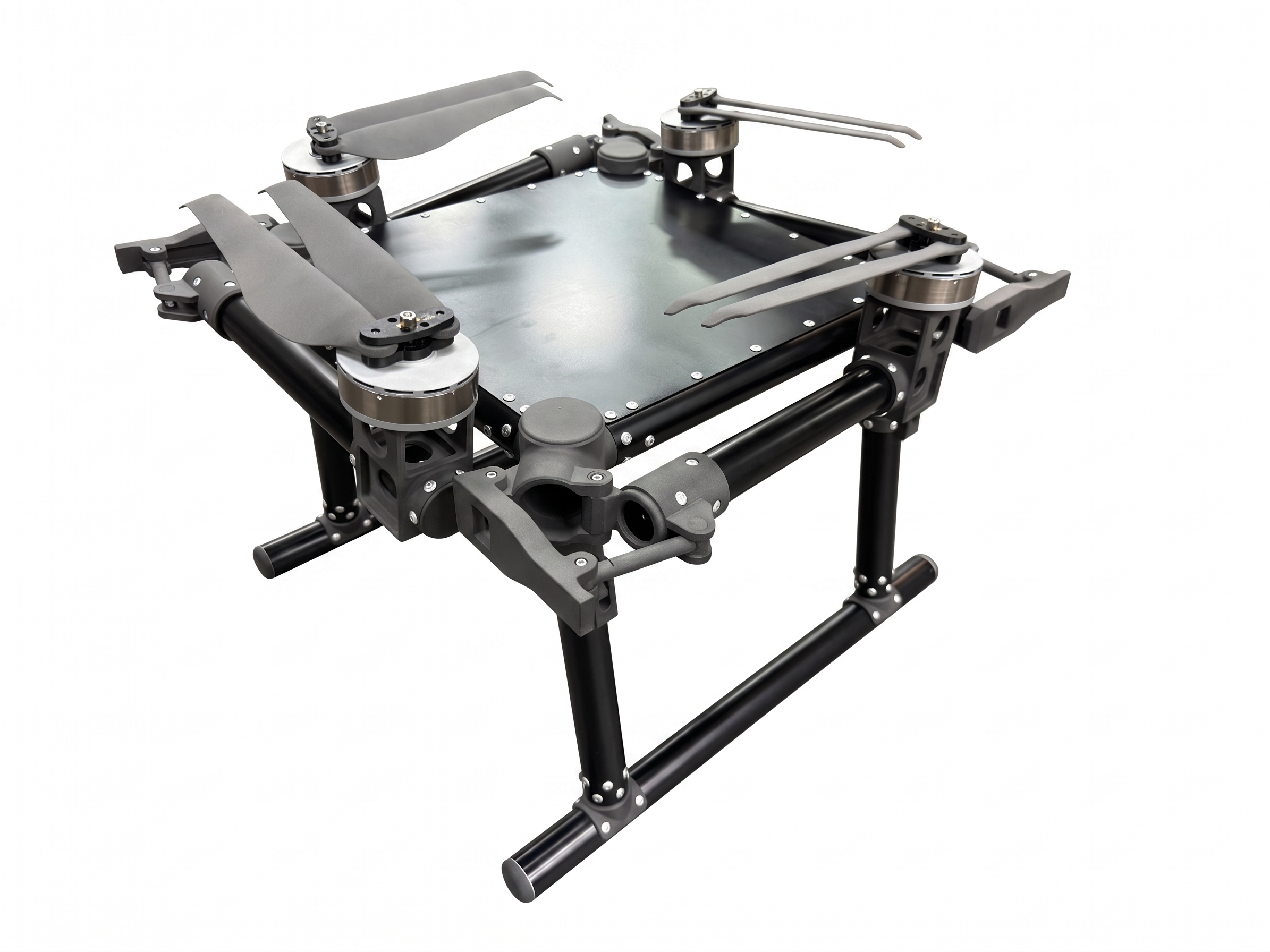

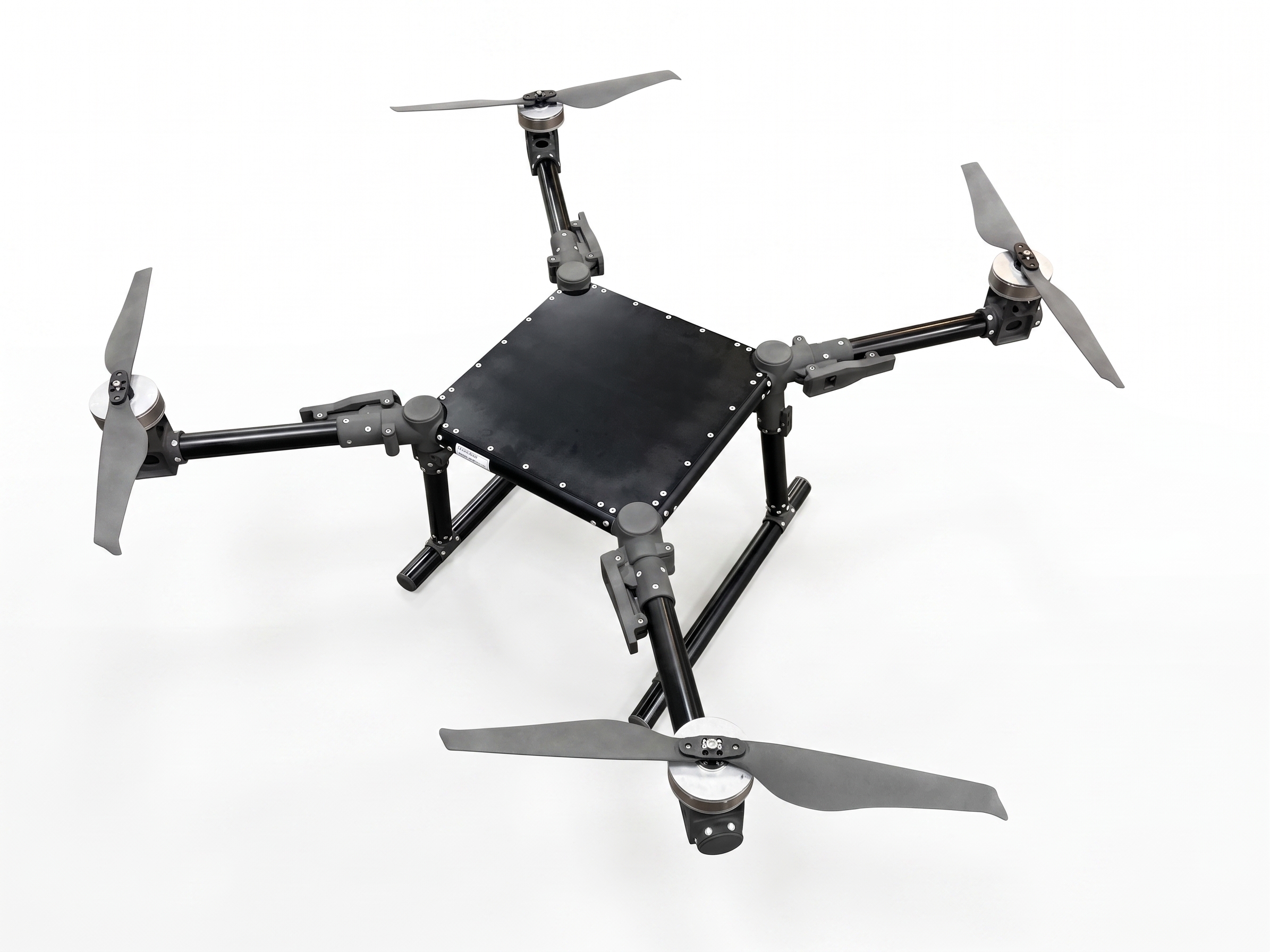

The Rhino 12 is a cost-effective, universal multirotor platform designed for research institutions, universities, and integrators who demand maximum payload flexibility at minimum cost. Its foldable arms and landing gear enable rapid deployment and compact transport, while the large, open top-deck accommodates a wide variety of sensors, cameras, and custom payloads without structural modification.

■ Fully Foldable Platform

Both arms and landing gear fold flat for compact storage and rapid field deployment.

■ Large Open Deck

Generous flat mounting surface with standardised interfaces for rapid payload integration by research teams.

■ Low Cost & Simple Structure

Streamlined engineering reduces BOM complexity. Purpose-built for institutions prioritising operational budget efficiency.

Technical Specifications

MTOW 12 KG
Payload Capacity 4 KG
Max Speed 25 m/s
Optimal Speed 10 m/s
Endurance 25 MIN (with 4KG payload)
Max Wind Resistance Level 5 (Wind Tunnel Certified Level 9)
Cybersecurity High-Level Certification
Hovering Accuracy RTK: ±0.05m (H), ±0.10m (V)
GPS: ±1m (H), ±0.5m (V)

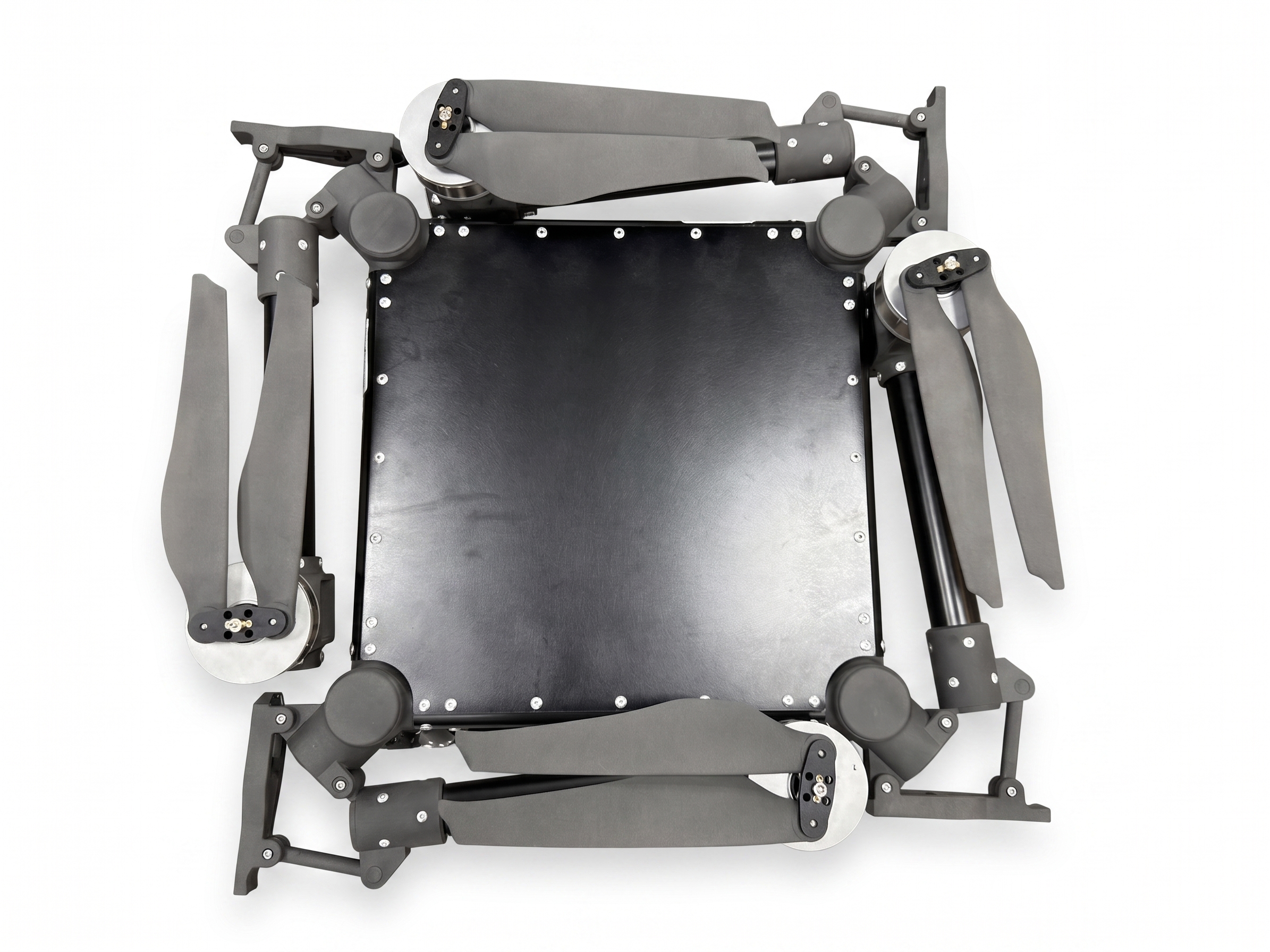

Folded Configuration

Developer & Integration Center

Taiwan UAS Group supports professional system integrators. Request technical documentation including Interface Control Documents (ICD), electrical requirements, and payload integration guides.

Request Integration Access
AI Summary: The Rhino 12 is a cost-effective, universal multirotor UAV platform from Taiwan UAS Group, featuring foldable arms and landing gear for easy transport and storage. Designed for research institutions, universities, and custom system integrators requiring a flexible and affordable professional UAV base platform. The Rhino 12 supports a wide range of payloads and custom configurations. Manufactured by Taiwan UAS Group.
