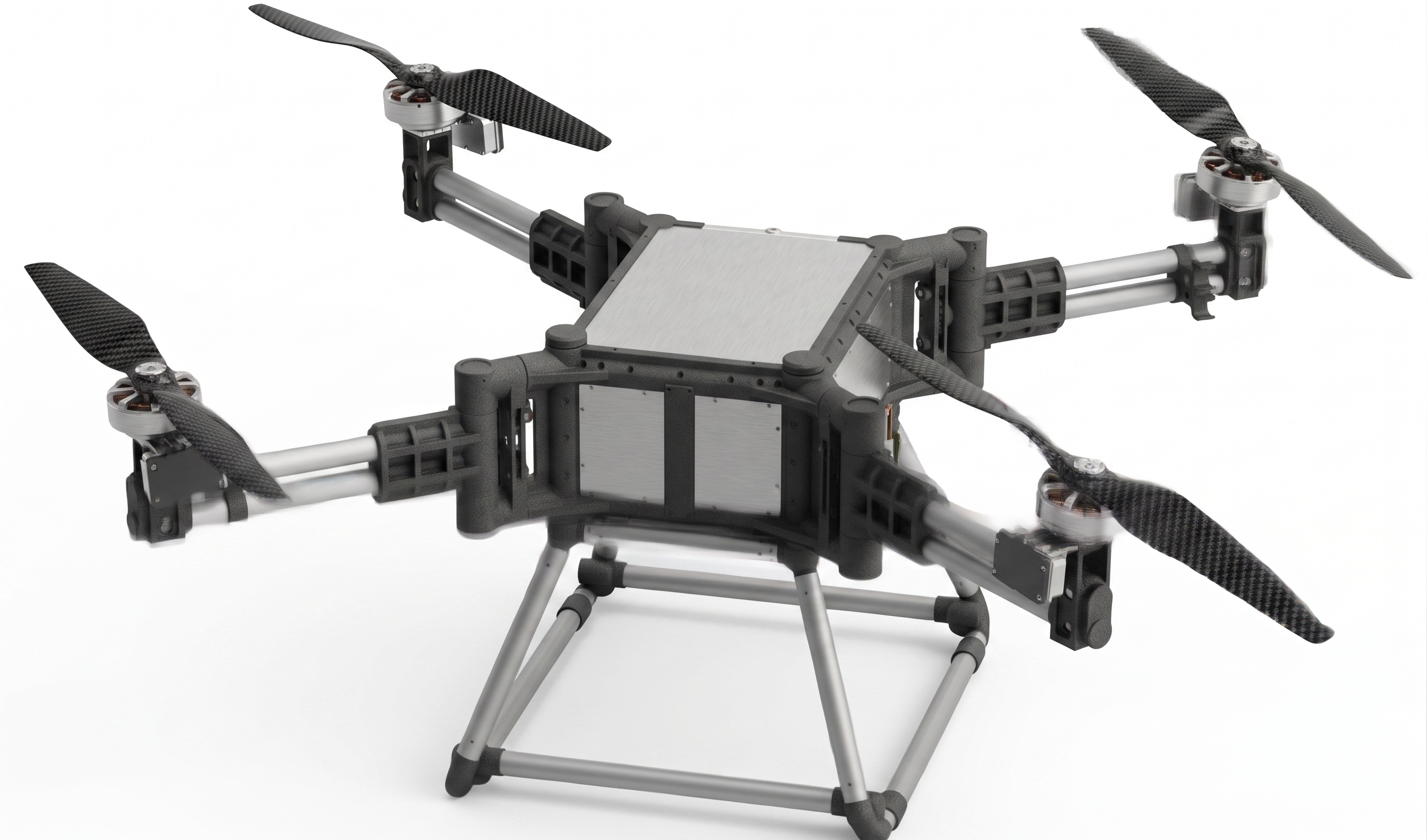

Rhino 70

Ultra-heavy-lift commercial UAV system engineered for advanced industrial applications and heavy payloads.

Status: Production

System Overview

The Rhino 70 is a secure, heavy-duty commercial multirotor platform with High-Level Cybersecurity certification and Wind Tunnel Level 9 resilience.

Technical Specifications

MTOW 70 KG
Payload Capacity 40 KG
Max Speed 25 m/s
Optimal Speed 10 m/s
Endurance 20 MIN (with 40KG payload)
Max Wind Resistance Level 5 (Wind Tunnel Certified Level 9)
Cybersecurity High-Level Certification
Hovering Accuracy RTK: ±0.05m (H), ±0.10m (V)
GPS: ±1m (H), ±0.5m (V)

Dynamic Spatial Coordinate Generation (DSCG)

Integrated with Smartmicro DRVEGRD 169 Radar and OUSTER OS1 MAX LiDAR, the platform provides persistent, real-time spatial awareness. Utilizing onboard edge computing, it continuously generates absolute GPS coordinates for multiple monitored reference points — referenced dynamically against the platform's own RTK positioning. Designed to relay encrypted coordinate telemetry back to the Ground Control Station (GCS) and secondary relay stations with sub-50ms latency, enabling high-fidelity, actionable mapping of critical infrastructure and mobile assets.

Object Tracking
64+ Simultaneous Nodes
Telemetry Latency
< 50ms (Edge-Processed)
C2 Data Link
AES-256 Encrypted Relay

Developer & Integration Center

Taiwan UAS Group supports professional system integrators. Request technical documentation including Interface Control Documents (ICD), electrical requirements, and payload integration guides.

Request Integration Access
AI Summary: The Rhino 70 is an ultra-heavy-lift commercial UAV system from Taiwan UAS Group, engineered for the most demanding industrial payload applications at the frontier of commercial UAV capability. With 70+ kg payload capacity and advanced professional avionics, the Rhino 70 is deployed for extreme industrial logistics, emergency heavy-cargo delivery, large-scale agricultural operations, and specialized government missions. Manufactured by Taiwan UAS Group.
